Electrical Fuses – Types commonly used
A fuse is an electrical safety device that is used to protect circuits from overheating and short circuits. It consists of a thin strip of metal, known as a fuse element, that is encased in a protective housing. The fuse element is designed to melt when the electrical current flowing through the fuse exceeds a certain level, known as the fuse’s amperage rating.
When the electrical current flowing through a fuse exceeds the fuse’s amperage rating, the fuse element heats up and melts. This breaks the circuit and stops the flow of electricity, protecting the wiring and electrical components in the circuit from damage. Once the fuse element has melted, the circuit will no longer function until the fuse is replaced with a new one.
Fuses are used in a wide range of electrical systems to protect circuits from overheating and short circuits. They are commonly found in homes, vehicles, and industrial and commercial settings. There are several different types of fuses, including blade fuses, glass fuses, and cartridge fuses, which vary in size, shape, and amperage ratings.
There are several different types of fuses, each designed for a specific purpose. Each type of fuse has its own unique characteristics and is suitable for different applications. The type of fuse you should use will depend on the specific requirements of your application. Some of the most common types of fuses include:

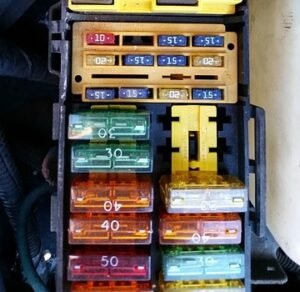

Blade fuse
Blade fuses also known as spade or plug-in fuses are the most common type of fuses used in vehicles. They are small and rectangular in shape, with two blades on either end that can be easily inserted into a fuse holder.
Blade fuses are a type of fuse that is used in many modern vehicles. They are called “blade” fuses because they have a thin strip of metal, known as a blade, that is used to make the electrical connection. Blade fuses are typically used to protect the wiring and electrical components in a vehicle.
Blade fuses come in a variety of sizes and amperage ratings to match the electrical loads of different circuits in the vehicle. They are often color-coded to indicate their amperage rating. The fuse has a small window or indicator on the top of the fuse that shows whether the fuse is blown or not. If the fuse is blown, the metal strip inside will be melted and the window will appear dark.
Blade fuses are designed to protect circuits from overheating and short circuits. When an electrical current flowing through a circuit exceeds the amperage rating of the fuse, the metal strip inside the fuse will melt, breaking the circuit and stopping the flow of electricity. This prevents damage to the wiring and electrical components in the circuit.
Blade fuses are easy to replace if they blow. They are typically found in a fuse box or panel under the dashboard or hood of a vehicle. To replace a blown fuse, you simply need to remove the old fuse and insert a new one of the same amperage rating. It is important to use the correct size fuse to ensure that the circuit is properly protected.
Glass fuse
Glass fuses are a type of fuse that was commonly used in older electrical systems. They are called “glass” fuses because they have a small glass body that contains a thin strip of metal, known as a fuse element, that is used to make the electrical connection. Glass fuses are used to protect the wiring and electrical components in a circuit from overheating and short circuits.
The glass fuse has a small, visible element inside that is connected to the metal end caps of the fuse. When an electrical current flowing through the fuse exceeds the fuse’s amperage rating, the fuse element will heat up and melt, breaking the circuit and stopping the flow of electricity. This prevents damage to the wiring and electrical components in the circuit.
Glass fuses come in a variety of sizes and amperage ratings to match the electrical loads of different circuits. They are often color-coded or marked with a number to indicate their amperage rating. To determine whether a glass fuse has blown, you can check the fuse element to see if it is melted or broken. If the fuse is blown, it needs to be replaced with a new one of the same size and amperage rating.
Glass fuses are less common than they used to be, as they are more prone to breaking and can be more difficult to replace than other types of fuses, such as blade fuses. However, they may still be used in some older electrical systems.
Cartridge fuse
Cartridge fuses also known as cylindrical fuses, these fuses are similar to blade fuses but are cylindrical in shape. They are often used in high-voltage applications, such as in electrical panels.
A cartridge fuse is a type of fuse that is used in electrical systems to protect the wiring and electrical components from overheating and short circuits. Cartridge fuses are cylindrical in shape and are designed to be screwed into a receptacle, much like a light bulb. They are called “cartridge” fuses because they have a removable core, or cartridge, that contains the fuse element.
The fuse element in a cartridge fuse is a thin strip of metal that is designed to melt when the electrical current flowing through the fuse exceeds the fuse’s amperage rating. This breaks the circuit and stops the flow of electricity, protecting the wiring and electrical components in the circuit.
Cartridge fuses come in a variety of sizes and amperage ratings to match the electrical loads of different circuits. They are often marked with a number or letter to indicate their amperage rating. To determine whether a cartridge fuse has blown, you can check the fuse element to see if it is melted or broken. If the fuse is blown, it needs to be replaced with a new one of the same size and amperage rating.
Cartridge fuses are widely used in industrial and commercial electrical systems, as well as in some residential applications. They are easy to install and provide a convenient way to protect circuits from electrical overloads.
Slow-blow fuse
also known as time-delay fuses, these fuses are designed to allow a small amount of current to pass through before they blow. This makes them suitable for applications where there may be brief spikes in current, such as in motors or compressors.
A slow-blow fuse is a type of fuse that is designed to allow a larger current to pass through it for a short period of time before it blows. Slow-blow fuses are also known as “time-delay” fuses. They are used in circuits where there may be brief surges of current that would trip a standard fuse but are not large enough to cause damage to the circuit.
For example, a slow-blow fuse might be used in an electrical circuit that powers a motor. When the motor is started, it can draw a large surge of current. A standard fuse would blow immediately in this situation, but a slow-blow fuse would allow the surge to pass through and then reset itself once the surge has subsided. This allows the motor to start without tripping the fuse.
HRC (High Rupturing Capacity) fuse
The HRC fuse is made up of a fuse element, which is a metal wire or ribbon that melts when the current flowing through the fuse exceeds the rated value. The fuse element is encased in a cylindrical housing that is made of ceramic or other heat-resistant materials. The housing has terminals that connect the fuse to the circuit.
The main difference between an HRC fuse and other types of fuses is its high breaking capacity. This means that it can safely interrupt large amounts of current without the risk of damage to the fuse or the surrounding equipment. They can carry short circuits or overload conditions for a known time period and after it will blow if the condition persists or increase. This is due to its design, which allows for faster and more efficient heat dissipation. Hence HRC fuses are commonly used with motors that require a high starting current for a short interval of time before coming to normal load because HRC fuse can be able to withstand such current rushes.
HRC fuses are available in a range of sizes and ratings, depending on the specific application. They are typically rated for currents between 100A and 800A and can be used in a variety of voltage ranges, including low-voltage, medium-voltage, and high-voltage systems.
They are also known for their high durability and long service life. However, they are relatively expensive compared to other types of fuses and can be difficult to replace if they blow, which is why they are mainly used in industrial and commercial applications.
Fast-acting fuses
also known as instant fuses, these fuses are designed to blow as soon as the current exceeds the fuse’s rating. They are commonly used in circuits where overcurrent protection is critical, such as in circuits that power sensitive electronic equipment.
A fast-blow fuse, on the other hand, is a standard fuse that is designed to blow as quickly as possible when the electrical current flowing through it exceeds the fuse’s amperage rating. Fast-blow fuses are used in circuits where a rapid interruption of the electrical current is necessary to protect the circuit from damage.
It is important to use the correct type of fuse for a given circuit to ensure that it is properly protected. Using a slow-blow fuse in a circuit that requires a fast-blow fuse could result in damage to the circuit while using a fast-blow fuse in a circuit that requires a slow-blow fuse could result in nuisance tripping of the fuse.
